The System

The complete ringlock scaffolding system

Every component is dimensioned to lock into the next. Mix standards, ledgers, transoms, and braces to build any access structure from one coordinated kit.

Core Principle

Built around the 8-point rosette

A cast rosette welded at 500 mm centres gives eight connection angles. Ledgers and braces click in with a hammer-less wedge, so a bay goes up square and stays square.

500 mm rosette pitch across all standard lengths
Forged wedge heads — no loose couplers, no tools
80 kN allowable load per rosette node

Components

Twenty parts cover every build

ringlock scaffolding vertical

Vertical standard with cast rosette nodes at 500 mm centres — the load-carrying spine of every ringlock bay.

48.3 mm OD0.5–3.0 m

ringlock scaffolding horizontal

Horizontal ledger with forged wedge heads that drop straight into the rosette for a hammer-less, square connection.

48.3 mm OD0.73–3.0 m

ringlock scaffolding bay brace

Single-action diagonal brace that locks to the rosette and keeps towers rigid and sway-free.

48.3 mmWedge lock

ringlock scaffolding clamp brace

Quick-clamp brace that snaps onto the standard for fast, tool-free bay bracing.

48.3 mmTool-free

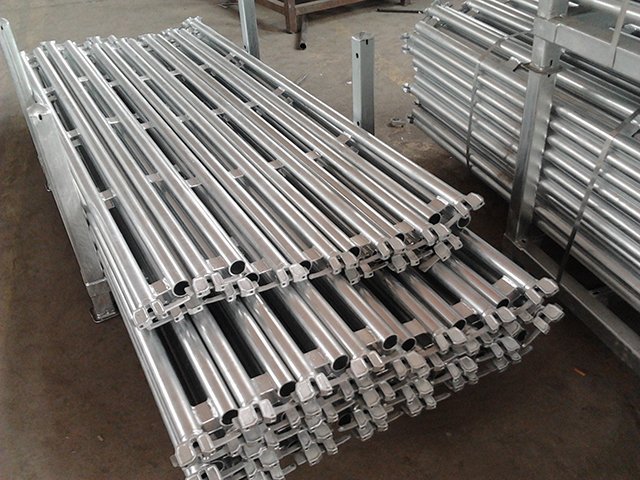

ringlock scaffolding truss

Facade truss that spans openings and ties long runs of scaffolding into one stable plane.

Up to 3.0 mForged

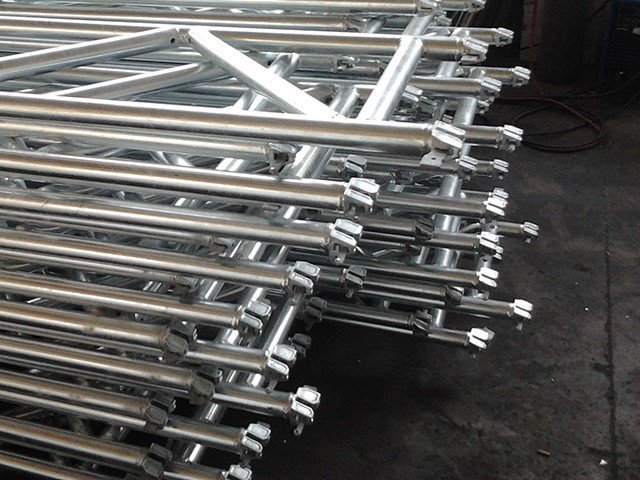

ringlock scaffolding lattice girder

Lightweight lattice beam for soffits and spans where a solid ledger can't reach.

0.5–2.5 mHot-dip GI

ringlock scaffolding console bracket

Hop-up bracket that clips into the rosette to extend the platform past the bay for close-to-wall work.

0.2–0.75 mTool-free

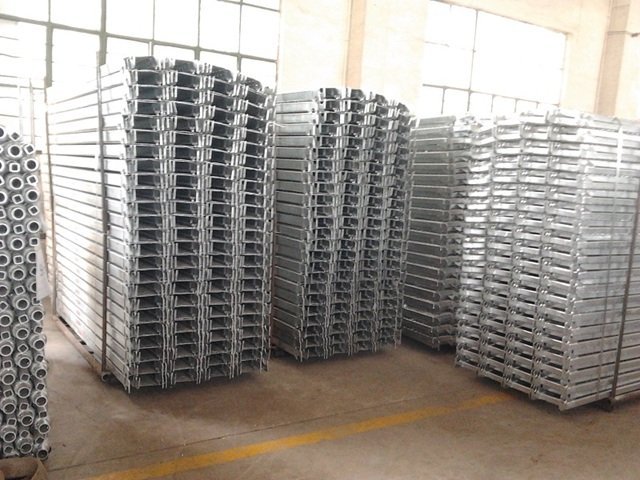

ringlock scaffolding SSP plank

Galvanised SSP steel deck plank with locked ends for a safe, slip-resistant working platform.

1.8 kN/m²Hook-in

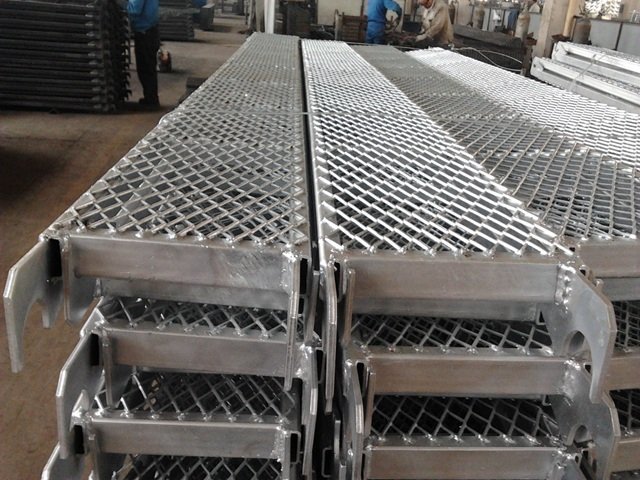

ringlock scaffolding sand blasting plank

Sand-blasted steel plank with a textured, anti-slip surface for demanding site conditions.

1.8 kN/m²Anti-slip

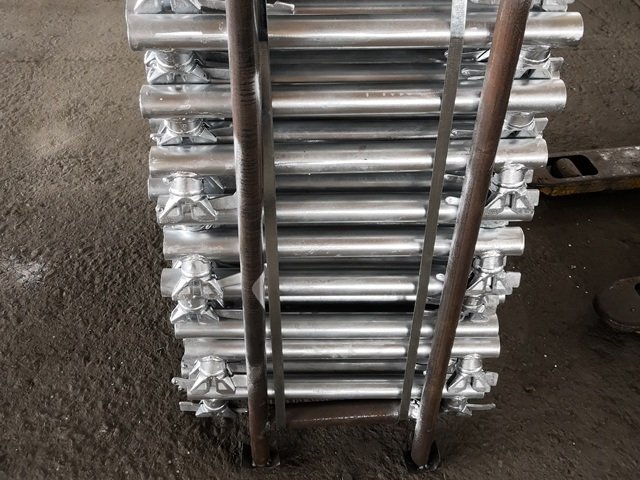

ringlock scaffolding leg lock

Crimped spigot that aligns and joins verticals end-to-end with no loose couplers.

Ø 48.3 mmCrimped

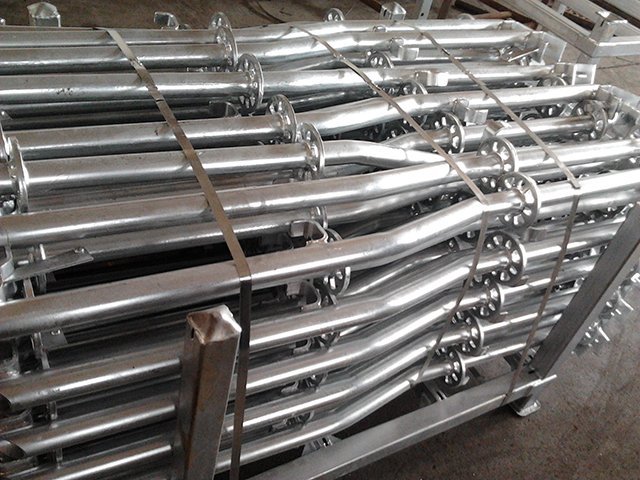

ringlock scaffolding crazy leg

Adjustable offset leg that levels the system on slopes, stairs and uneven ground.

0.3–0.6 mAdjustable

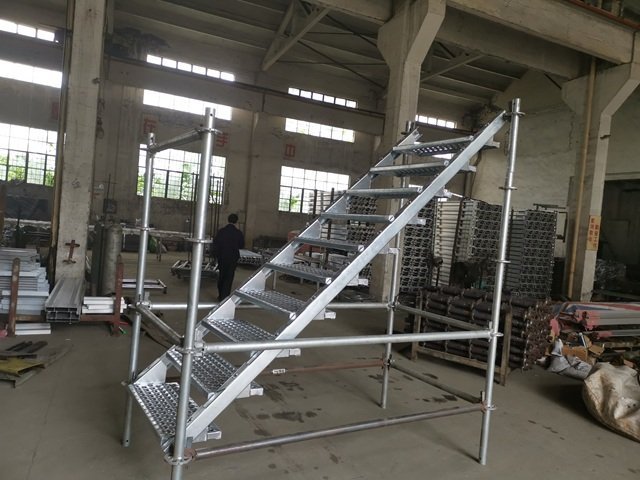

ringlock scaffolding stair

Clip-on stair flight and landing that give safe, compliant access between platform levels.

2.0 m flight45° pitch

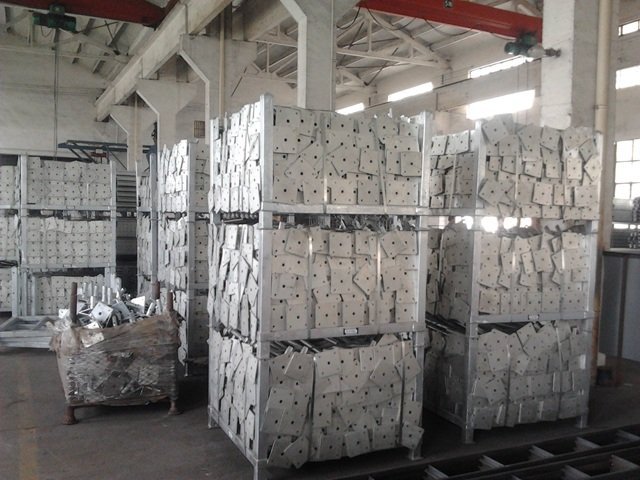

ringlock scaffolding base jack

Adjustable screw jack that levels the system on uneven ground and spreads the load.

0.4–0.7 mEN rated

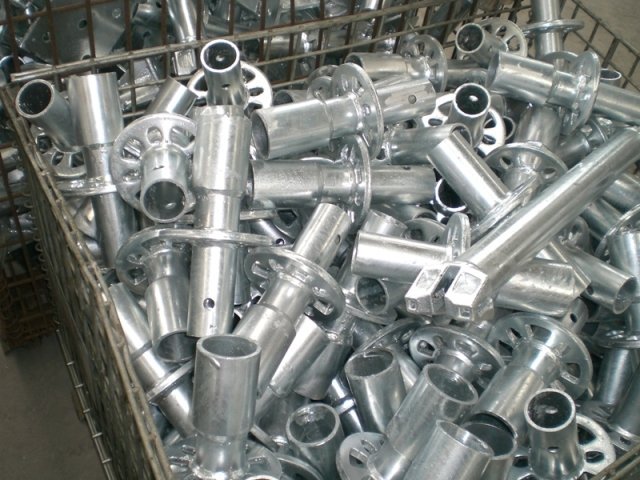

ringlock scaffolding base collar

Snap-on base collar that seats the first standard squarely on the base jack.

Fits 48.3 mmSnap-on

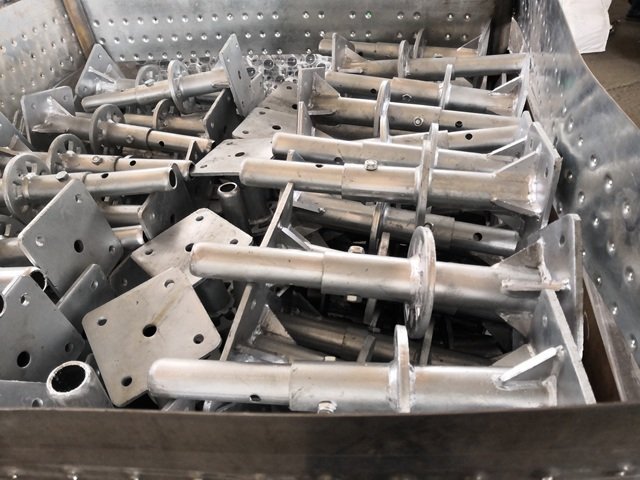

ringlock scaffolding castor adaptor

Adaptor that converts a standard socket into a swivel castor mount for mobile towers.

Fits Ø 48.3 mmSwivel

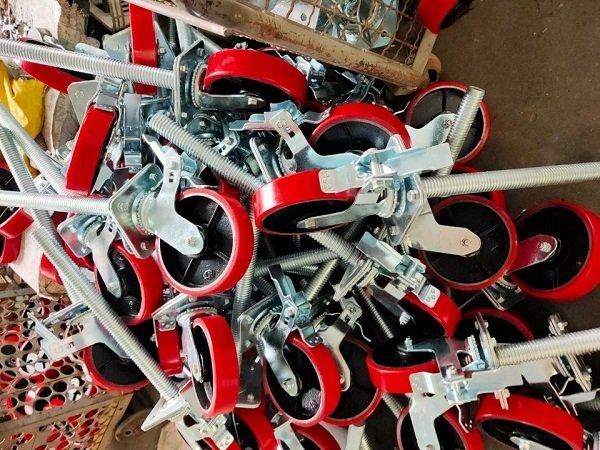

ringlock scaffolding castor

Heavy-duty castor with brake for rolling towers and temporary access structures.

200 mm wheelBrake

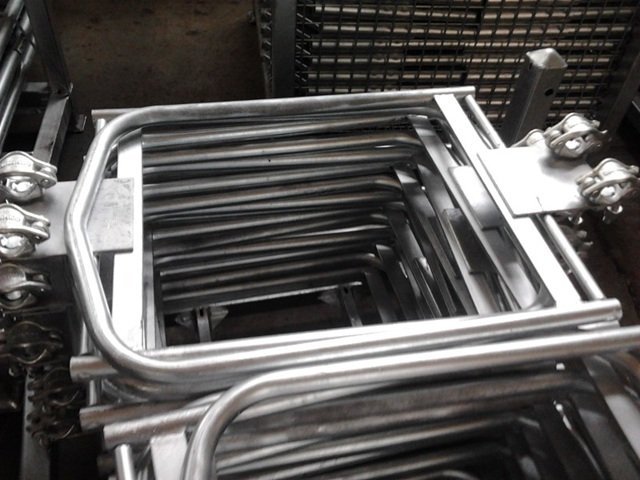

ringlock scaffolding swing gate

Self-closing swing gate that gives safe personnel access through the guardrail opening on any platform level.

48.3 mmSelf-closing

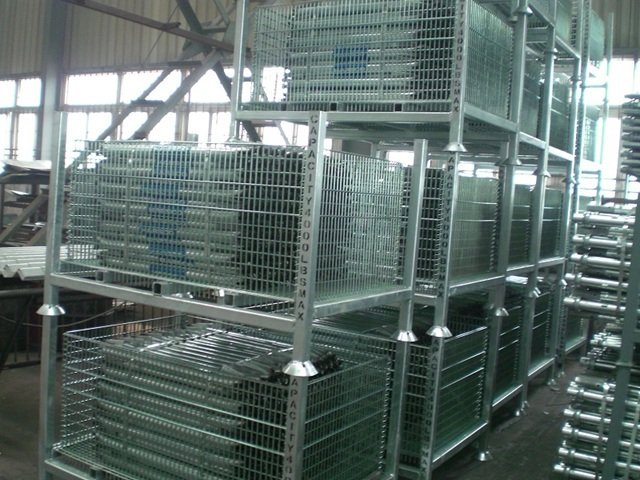

scaffolding cage

Mesh safety cage that encloses stair and access openings to protect workers at height.

1.0–2.0 mMesh panel

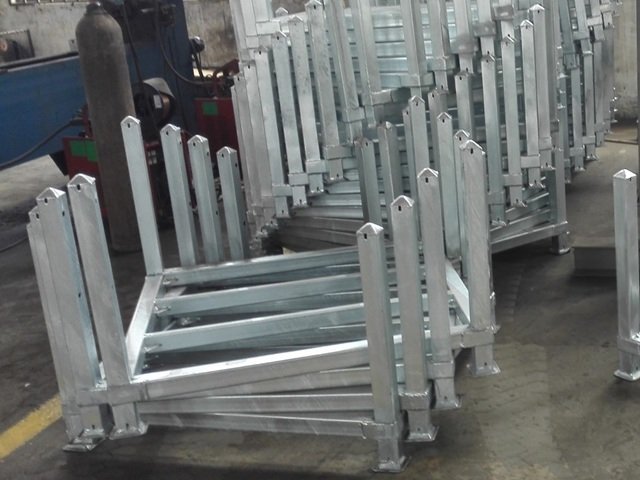

scaffolding rack

Galvanised storage rack that keeps components organised and off the ground on site.

2.0 mGalvanised

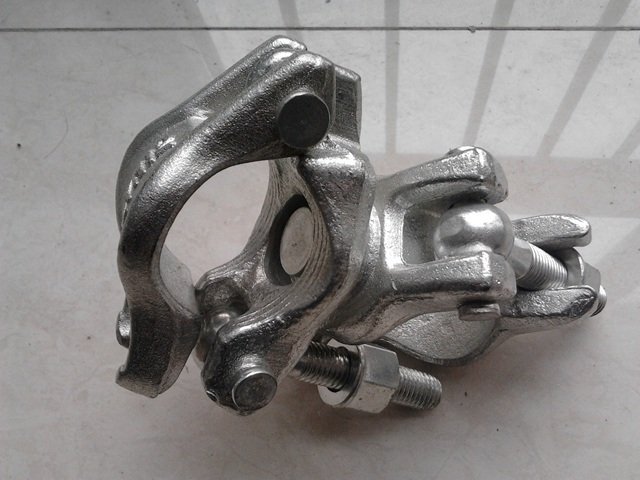

scaffolding clamp

Drop-forged scaffolding clamp for connecting tubes and tying scaffoldings to structures.

48.3 mmDrop-forged

Specifications

Technical data at a glance

Standard tube	48.3 mm OD × 3.2 mm wall, S355 steel
Rosette pitch	500 mm centres, eight connection points
Allowable load / node	80 kN (ledger), 60 kN (brace)
Bay sizes	0.73 m, 1.09 m, 1.40 m, 1.83 m, 2.00 m, 3.00 m
Finish	Hot-dip galvanised to ISO 1461, 20-year warranty
Standards	EN 12810, EN 12811, OSHA 29 CFR 1926
Platform	Galvanised steel deck, 1.8 kN/m² working load
